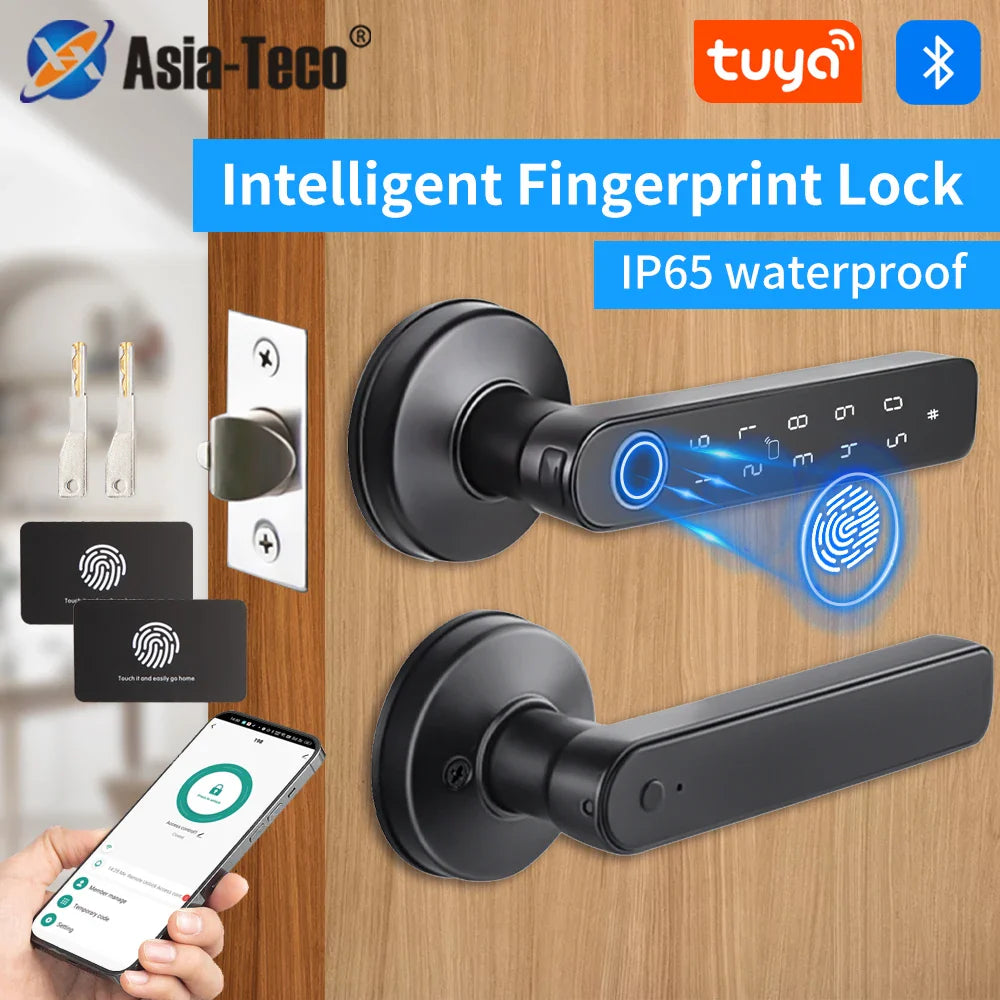

Fingerprint Door Lock Smart Digital Electronic Lock with Password

SPECIFICATIONS

Brand Name: Asia-Teco

Connectivity: Bluetooth

Doorknob Funcition: Biometric,Key & Keypad

Handle Direction: Direction Reversible

High-concerned chemical: None

Installation Method: Drilling installation

Lock-picking time: x1.5 s

Material: ABS plastic panel, stainless steel lock core

Model Number: Q50-tuya

Operating temperature range: -20-70℃

Power Source: DRY BATTERY

Power Supply: DRY BATTERY

Power supply mode: 4 AAA Alkali-saving dry cell

Smart home platform: Tuya

Special Features: Support Gateway

Suitable Door Type: Wooden Door

Voltage range: 4.5-9V

Waterproof Grade: Compliant with IP65 standard

Ways To Unlock: App,Bluetooth,Mechanical Keys,Card,Password

voltage: 4.8V

M5 Tuya BLE Fingerprint Door Lock Smart Digital Electronic Lock with Password/Key/IC Card(Optional)/ Smartlife/ Tuya APP Unlock

1、Function

1.Bluetooth unlock on phone

2.Remote Distribution of electronic keys

3.password unlock

4.Fingerprint unlock

5.Lock-picking records Surveillance

2、Performance parameter

Bluetooth Standard:Bluetooth 4.1 BLE

Supported Cell phone system:Android4.3/10S7.0

Power supply mode:4pcs AAA Alkali-saving dry cell

Material: ABS plastic panel, stainless steel lock core

Low Electricity alarm

voltage:4.8V

Voltage range: 4.5-9V

Standby Current:65 micro amperes

Operating Current:Less than 200 ma

Lock-picking time: x1.5 s

Operating temperature range:-20-70℃

touch key Types:Capacitive touch key

Number of passwords:Custom and permanent passwords:100

Other dynamic passwords:100

Lock Unlock mode:APP BLE, passwords, fingerprints, mechanical keys,IC Card(Optional)/Gateway Remote Unlock(Optional)

Motor interface output voltage:Battery voltage reduction 0.3V

Fingerprint head type:Semiconductor fingerprint Sensor

Fingerprint capacity:50 fingerprints

Waterproof Grade:Compliant with IP65 standard

False Accept Rate:<0.001%

False Reject Rate,:<1.0%

Attention: For doors over 4cm thick, springs must be installed in the square holes of the indoor handles.
